4 results for 71-6790

SamClutch

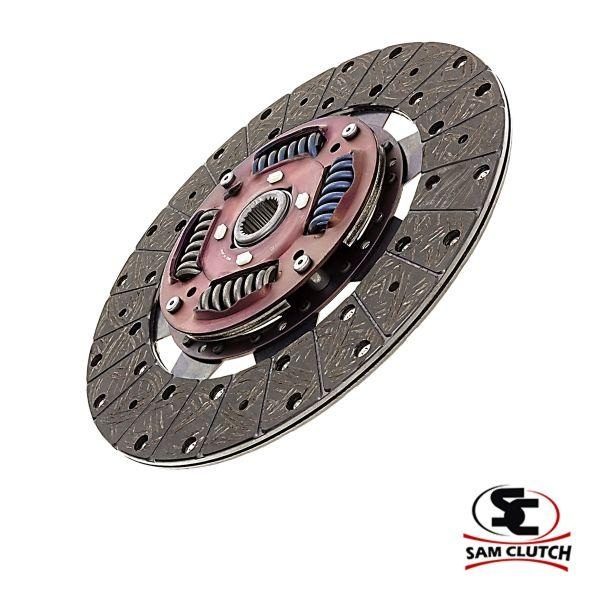

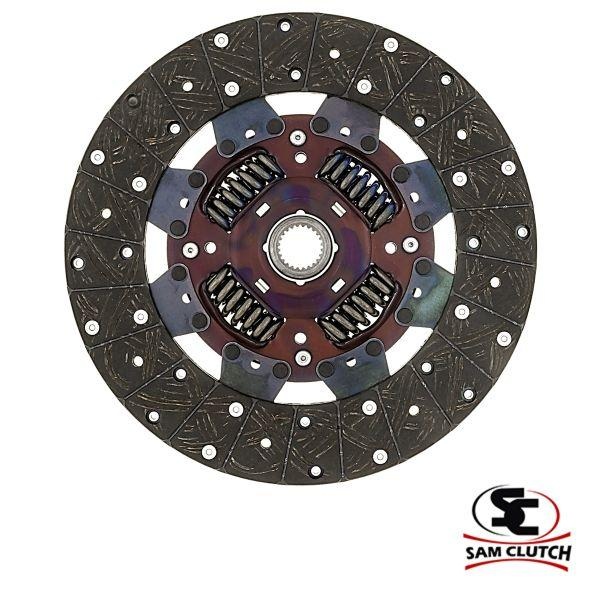

71-6790 Clutch Disc Available
71-6790

Manufacturer Cross References

Also Found In These Kits 1

Clutch Kit 840-1020

Specifications

Inner Diameter 25.6mm
No's of Spline 24
Outer Diameter 275mm

OE / Original Equipment Numbers 2

UD TRUCKS 30100-0T001 UD TRUCKS 30100-05T20

Vehicle Applications 3

FOTON

TUNLAND / TUNLAND-G7

-

Cummins 2.8 ISF

NISSAN

CABSTAR / Cabstar45

Freight Carrier 4 x 2

ND FD35T

NISSAN

CABSTAR / Cabstar35(552)

Freight Carrier 4 x 2

ND FD35T

First Motion
327.0001 Clutch Disc Available

Manufacturer Cross References

Not a kit component.

Specifications

Inner Diameter 25.6mm
No's of Spline 24
Outer Diameter 275mm

OE / Original Equipment Numbers 2

UD TRUCKS 30100-0T001 UD TRUCKS 30100-05T20

Vehicle Applications 3

FOTON

TUNLAND / TUNLAND-G7

-

Cummins 2.8 ISF

NISSAN

CABSTAR / Cabstar45

Freight Carrier 4 x 2

ND FD35T

NISSAN

CABSTAR / Cabstar35(552)

Freight Carrier 4 x 2

ND FD35T

SACHS

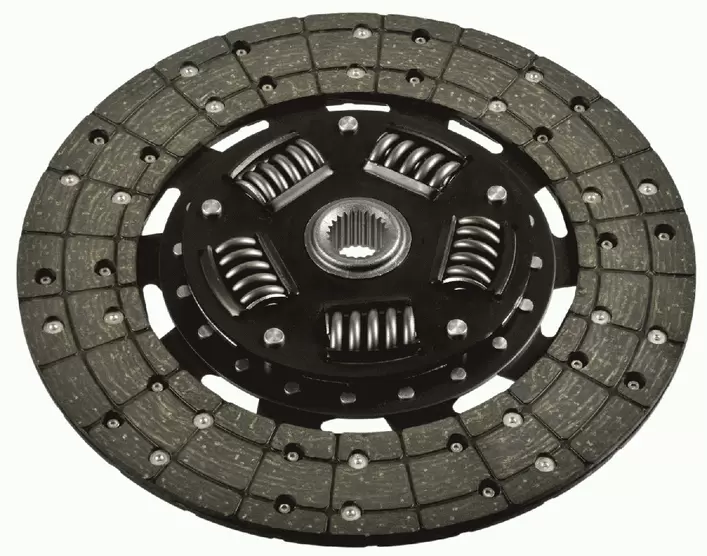

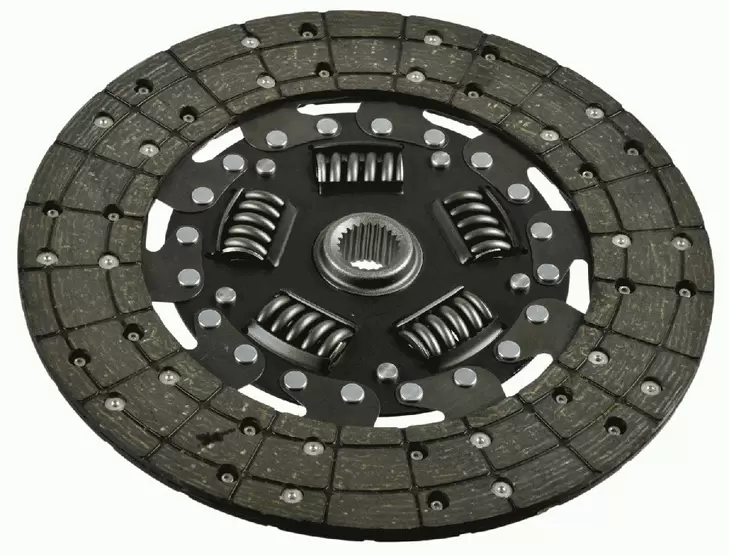

1862 565 001 Clutch Disc Available
1862 565 001

Manufacturer Cross References

Also Found In These Kits 2

Clutch Kit 3000 271 001 Clutch Kit 3000 951 228

Specifications

Brand SACHS
Diameter [mm] 275
Hub Profile 23x25,5-24N
Net Weight (kg) 2,40
Number of Teeth 24
Parameter 275VTB
Warranty 3 years warranty

OE / Original Equipment Numbers 56

ISUZU 5-31240-043-0 ISUZU 5-31240-043-1 ISUZU 5-31240-048-0 ISUZU 8-94159-103-0 ISUZU 8-94159-103-1 ISUZU 8-94317-315-0 ISUZU 8-94339-801-0 ISUZU 8-94339-801-1 ISUZU 8-94342-615-0 ISUZU 8-94342-615-1 ISUZU 8-97022-976-0 ISUZU 8-97032-287-0 ISUZU 8-97032-287-1 ISUZU 8-97163-194-0 ISUZU 97163194 NISSAN 30100-01J00 NISSAN 30100-01J01 NISSAN 30100-05T00 NISSAN 30100-05T01 NISSAN 30100-05T03 NISSAN 30100-05T20 NISSAN 30100-06J00 NISSAN 30100-06J01 NISSAN 30100-06J02 NISSAN 30100-06J05 NISSAN 30100-06J06 NISSAN 30100-06J14 NISSAN 30100-06J19 NISSAN 30100-06JX6 NISSAN 30100-0Y200 NISSAN 30100-37J00 NISSAN 30100-41T60 NISSAN 30100-41T61 NISSAN 30100-C6000 NISSAN 30100-C6001 NISSAN 30100-C7400 NISSAN 30100-C8000 NISSAN 30100-C8001 NISSAN 30100-C8002 NISSAN 30100-C8020 NISSAN 30100-C8060 NISSAN 30100-N9300 NISSAN 30100-P9300 NISSAN 30100-S9400 NISSAN 30100-S9401 NISSAN 30100-S9420 NISSAN 30100-T8010 NISSAN 30100-T8020 NISSAN 30100-T8021 NISSAN 30100-T8094 NISSAN 30100-VB000 NISSAN 30100-VB004 NISSAN 30100-VB005 NISSAN 30100-VB008 OPEL 6 64 021 OPEL 97163194
EXEDY
NSD009U Clutch Disc Available
Replaced by
NSD009 NSD065Y

Manufacturer Cross References

Not a kit component.

Specifications

inner_diameter_mm 180
outer_diameter_mm 275
summary_spec Outer:275mm / Inner:180mm

OE / Original Equipment Numbers 6

ISUZU 30100-WJ108 ISUZU 30100-WJ104 ISUZU 30100-41T61 ISUZU 30100-05T03 UD TRUCKS 30100-0T001 UD TRUCKS 30100-05T20

Vehicle Applications 33

ISUZU

BUS / SBCW41

2003-03 – 2003-03

TD42，TD42T / 4200 cc

ISUZU

BUS / SBHW41

2003-03 – 2003-03

TD42，TD42T / 4200 cc

ISUZU

BUS / SBJW41

2003-03 – 2003-03

TD42，TD42T / 4200 cc

ISUZU

BUS / SBVW41

2003-03 – 2003-03

TD42，TD42T / 4200 cc

ISUZU

BUS / SBCW41

2002-01 – 2002-01-2003-03

TD42，TD42T / 4200 cc

ISUZU

BUS / SBHW41

2002-01 – 2002-01-2003-03

TD42，TD42T / 4200 cc

ISUZU

BUS / SBJW41

2002-01 – 2002-01-2003-03

TD42，TD42T / 4200 cc

ISUZU

BUS / SBVW41

2002-01 – 2002-01-2003-03

TD42，TD42T / 4200 cc

ISUZU

BUS / JRAW40

1993-04 – 1993-04

TD42 / 4200 cc

ISUZU

BUS / JRGW40

1993-04 – 1993-04

TD42 / 4200 cc

ISUZU

BUS / JRW40

1993-04 – 1993-04

TD42 / 4200 cc

ISUZU

BUS / JRYW40

1993-04 – 1993-04

TD42 / 4200 cc

ISUZU

BUS / JRAW40

1990-01 – 1990-01-1993-04

TD42 / 4200 cc

ISUZU

BUS / JRGW40

1990-01 – 1990-01-1993-04

TD42 / 4200 cc

ISUZU

BUS / JRW40

1990-01 – 1990-01-1993-04

TD42 / 4200 cc

ISUZU

BUS / JRYW40

1990-01 – 1990-01-1993-04

TD42 / 4200 cc

UD TRUCKS

CONDOR / UG4YS41

1992-01 – 1992-01

FD42 / 4300 cc

UD TRUCKS

CONDOR / DG2S41

1991-01 – 1991-01

FD42 / 4300 cc

UD TRUCKS

CONDOR / RG2YS41

1991-01 – 1991-01

FD42 / 4300 cc

UD TRUCKS

CONDOR / SG2S41

1991-01 – 1991-01

FD42 / 4300 cc

UD TRUCKS

CONDOR / UH4NS41

1991-01 – 1991-01

FD42 / 4300 cc

UD TRUCKS

CONDOR / UH5NS41

1991-01 – 1991-01

FD42 / 4300 cc

UD TRUCKS

CONDOR / ZG4YS41

1991-01 – 1991-01

FD42 / 4300 cc

UD TRUCKS

CONDOR / DG2S41

FD42 / 4200 cc

UD TRUCKS

CONDOR / LG2YS41

FD42 / 4200 cc

UD TRUCKS

CONDOR / LG4YS41

FD42 / 4200 cc

UD TRUCKS

CONDOR / NK110

FD35 / 3500 cc

UD TRUCKS

CONDOR / RG2YS41

FD42 / 4200 cc

UD TRUCKS

CONDOR / SG2S41

FD42 / 4200 cc

UD TRUCKS

CONDOR / UG4YS41

FD42 / 4200 cc

UD TRUCKS

CONDOR / UH4NS41

FD42 / 4200 cc

UD TRUCKS

CONDOR / UH5NS41

FD42 / 4200 cc

UD TRUCKS

CONDOR / ZG4YS41

FD42 / 4200 cc
