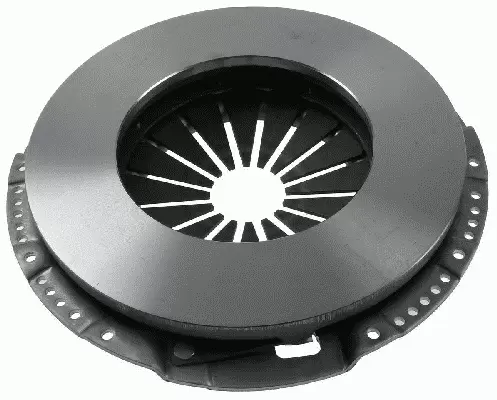

135.020 — SAM CLUTCH Parts Cross Reference

Also Found In These Kits 1

Clutch Kit 635 3020 00

Specifications

Diameter [mm] 350

Height [mm] 113

Length [mm] 452

Weight [kg] 26.975

Width [mm] 434

OE / Original Equipment Numbers 2

MERCEDES-BENZ 004 250 24 04 MERCEDES-BENZ A 004 250 24 04

Vehicle Applications 1

MERCEDES-BENZ

NG / 2219

06.1976 – 01.1987

Platform/Chassis 6x4

OM 401.926 / 9570 cc / Diesel

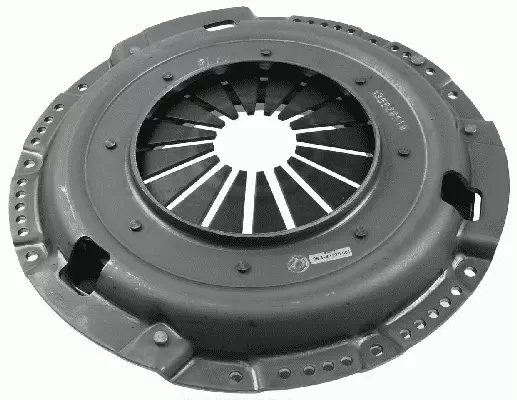

135 0205 10 Clutch Pressure Plate Available

Manufacturer Cross References

3482 870 001

135 0205 10

Also Found In These Kits 1

Clutch Kit 635 1143 10

Specifications

Diameter [mm] 350

Height [mm] 155

Length [mm] 436

Weight [kg] 19.75

Width [mm] 425

OE / Original Equipment Numbers 3

CASE IH 512 3062 NEW HOLLAND 512 3062 NEW HOLLAND 512 4031

135.020 Cover Assembly Available

Manufacturer Cross References

81-35601

135.020

Not a kit component.

Specifications

Faceplate ID = 185mm OD = 356mm

Loctaion Diameter 412mm

Spigot Shaft Sleeve 1 3/4"

Vehicle Applications 9

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPT1116-(6Ton)

Freight Carrier 4 x 2

TATA 697 TCIC (Euro II)

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPT1518SCEX2SleeperCab-(8Ton)

Freight Carrier 4 x 2

TATA Cummins B 180 20 (Euro II)

TATA

BUS RANGE / LPO918-38SEATER

Bus 4 x 2

TATA Cummins 6BT5.9-180 (Euro II)

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPK1518-(8Ton)

Tipper 4 x 2

TATA Cummins B 180 20 (Euro II)

TATA

(EHCV) EXTRA HEAVY COMMERCIAL VEHICLE / LPT1918-(10Ton)

Freight Carrier 4 x 2

TATA Cummins B 180 20 (Euro II)

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPT1518EX2-(8Ton)

Freight Carrier 4 x 2

TATA Cummins B 180 20 (Euro II)

TATA

(EHCV) EXTRA HEAVY COMMERCIAL VEHICLE / LPK2516-(14Ton)

Tipper 6 x 4

TATA Cummins 6 BT 5.9 (Euro II)

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPT1216-(6Ton)

Freight Carrier 4 x 2

TATA 697 TCIC (Euro II)

TATA

(MCV) MEDIUM COMMERCIAL VEHICLE / LPTA715-(4Ton)

Freight Carrier 4 x 4

TATA Cummins 6BT AA 5.9 (Euro III)

81-35601 Cover Assembly Available

Manufacturer Cross References

135.020

81-35601

Also Found In These Kits 1

Clutch Kit 840-1152

Specifications

Faceplate ID = 185mm OD = 356mm

Loctaion Diameter 412mm

Spigot Shaft Sleeve 1 3/4"

Vehicle Applications 9

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPT1116-(6Ton)

Freight Carrier 4 x 2

TATA 697 TCIC (Euro II)

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPT1518SCEX2SleeperCab-(8Ton)

Freight Carrier 4 x 2

TATA Cummins B 180 20 (Euro II)

TATA

BUS RANGE / LPO918-38SEATER

Bus 4 x 2

TATA Cummins 6BT5.9-180 (Euro II)

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPK1518-(8Ton)

Tipper 4 x 2

TATA Cummins B 180 20 (Euro II)

TATA

(EHCV) EXTRA HEAVY COMMERCIAL VEHICLE / LPT1918-(10Ton)

Freight Carrier 4 x 2

TATA Cummins B 180 20 (Euro II)

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPT1518EX2-(8Ton)

Freight Carrier 4 x 2

TATA Cummins B 180 20 (Euro II)

TATA

(EHCV) EXTRA HEAVY COMMERCIAL VEHICLE / LPK2516-(14Ton)

Tipper 6 x 4

TATA Cummins 6 BT 5.9 (Euro II)

TATA

(HCV) HEAVY COMMERCIAL VEHICLE / LPT1216-(6Ton)

Freight Carrier 4 x 2

TATA 697 TCIC (Euro II)

TATA

(MCV) MEDIUM COMMERCIAL VEHICLE / LPTA715-(4Ton)

Freight Carrier 4 x 4

TATA Cummins 6BT AA 5.9 (Euro III)

3482 000 953 Cover Assembly Discontinued

Manufacturer Cross References

Also Found In These Kits 2

Clutch Kit 3400 700 417 Clutch Kit 3400 125 001

Specifications

Brand SACHS

Diameter [mm] 350

Net Weight (kg) 25,75

Parameter GMF350X

OE / Original Equipment Numbers 10

DAF 0660306 IVECO 7138962 MERCEDES-BENZ 002 250 75 04 MERCEDES-BENZ 004 250 24 04 MERCEDES-BENZ 695 250 71 04 MERCEDES-BENZ A 002 250 75 04 MERCEDES-BENZ A 004 250 24 04 MERCEDES-BENZ A 695 250 71 04 NEOPLAN 0401.112.00 NEOPLAN 0421.003.00

81-7152 Cover Assembly Available

Manufacturer Cross References

Also Found In These Kits 6

Clutch Kit 840-1127 Clutch Kit 840-1107 Clutch Kit 840-1111 Clutch Kit 840-1112 Clutch Kit 840-1169 Clutch Kit 840-1123

Specifications

Faceplate ID = 189mm OD = 350mm

Loctaion Diameter 395mm

OE / Original Equipment Numbers 10

Vehicle Applications 59

MERCEDES-BENZ

1317 / 1317L

Flatbed/Chassis 4 x 2

OM 366

MERCEDES-BENZ

1417 / 1417AKO/KO

Municipal Vehicle 4 x 2/4

ADE 352 T ADE 366 T

MERCEDES-BENZ

1121 / 1121L

Flatbed/Chassis 4 x 2

OM 366

MERCEDES-BENZ

1320 / 1320L

Flatbed/Chassis 4 x 2

OM 366LA

MERCEDES-BENZ

2420 / 2420L

Flatbed/Chassis 6 x 2

OM 356 OM 366LA

MERCEDES-BENZ

1820 / 1820L

Flatbed/Chassis 4 x 2

OM 356 OM357

MERCEDES-BENZ

1314 / 1314KO

Municipal Vehicle 4 x 4

OM 366

MERCEDES-BENZ

1419 / 1419L

Flatbed/Chassis 4 x 2

OM 401

MERCEDES-BENZ

1417 / 1417A

Flatbed/Chassis 4 x 4

ADE 352 T ADE 366 T

MERCEDES-BENZ

1417 / 1417CAK/CK

Dump Truck 4 x 2/4

ADE 352 T ADE 366 T

MERCEDES-BENZ

1617 / 1617L

Flatbed/Chassis 4 x 2

OM 362 OM 366

MERCEDES-BENZ

1617 / 1617AK/K

Dump Truck 4 x 2/4

OM 362 OM 366

MERCEDES-BENZ

1617 / 1617

Flatbed/Chassis 4 x 2

OM 362 OM 366

MERCEDES-BENZ

1419 / 1419AK

Dump Truck 4 x 4

OM 401

MERCEDES-BENZ

1414 / 1414

Flatbed/Chassis 4 x 2

ADE352 T ADE 366 N

MERCEDES-BENZ

2219 / 2219L

Flatbed/Chassis 6 x 2

OM 401

MERCEDES-BENZ

1419 / 1419AS

Truck Tractor 4 x 4

OM 401

MERCEDES-BENZ

1417 / 1417K

Dump Truck 4 x 2

ADE 352 T ADE 366 T

MERCEDES-BENZ

1617 / 1617C/CL

Flatbed/Chassis 4 x 2

OM 362 OM 366

MERCEDES-BENZ

1617 / 1617CAK/CK

Dump Truck 4 x 2/4

OM 362 OM 366

MERCEDES-BENZ

1120 / 1120L

Flatbed/Chassis 4 x 2

OM 366

MERCEDES-BENZ

1419 / 1419K

Dump Truck 4 x 2

OM 401

MERCEDES-BENZ

2020 / 2020

Flatbed/Chassis 4 x 2

OM 366LA

MERCEDES-BENZ

2219 / 2219C/CL

Flatbed/Chassis 6 x 2

OM 362 OM 366

MERCEDES-BENZ

1117 / 1117A/L

Flatbed/Chassis 4 x 2/4

OM 366

MERCEDES-BENZ

1019 / 1019AF/F

Flatbed/Chassis 4 x 4

OM 401

MERCEDES-BENZ

1117 / 1117S/LS

Truck Tractor 4 x 2

OM 366

MERCEDES-BENZ

1717 / 1717

Flatbed/Chassis 4 x 2

OM 356

MERCEDES-BENZ

1317 / 1317S/LS

Truck Tractor 4 x 2

OM 366

MERCEDES-BENZ

1417 / 1417

Flatbed/Chassis 4 x 2

ADE 352 T ADE 366 T

MERCEDES-BENZ

1419 / 1419S/LS

Truck Tractor 4 x 2

OM 401

MERCEDES-BENZ

1120 / 1120S/LS

Truck Tractor 4 x 2

OM 366

MERCEDES-BENZ

1417 / 1417C/CA

Flatbed/Chassis 4 x 2/4

ADE 352 T ADE 366 T

MERCEDES-BENZ

1416 / 1416K/36

MERCEDES-BENZ

OH - SERIES / OH1617/48

Bus 4 x 2

MERCEDES-BENZ

1320 / 1320S/LS

Truck Tractor 4 x 2

OM 366LA

MERCEDES-BENZ

OF - SERIES / OF1619K/S/AK

1980+

Bus 4 x 2

MERCEDES-BENZ

1417 / 1417AK

Dump Truck 4 x 4

ADE 352 T ADE 366 T

MERCEDES-BENZ

1419 / 1419C/CL

Flatbed/Chassis 4 x 2

OM 362 OM 366

MERCEDES-BENZ

1720 / 17201720L

Flatbed/Chassis 4 x 2

OM 356

MERCEDES-BENZ

1120 / 1120AF/F

Municipal Vehicle 4 x 2/4

OM 366

MERCEDES-BENZ

1419 / 1419F

Municipal Vehicle 4 x 2

OM 401

MERCEDES-BENZ

OF - SERIES / OF1419

1980+

Bus 4 x 2

ADE 401

MERCEDES-BENZ

1820 / 1820

Flatbed/Chassis 4 x 2

OM 356 OM357

MERCEDES-BENZ

2219 / 2219KO

Municipal Vehicle 6 x 4

OM 401

MERCEDES-BENZ

1717 / 1717K

Dump Truck 4 x 2

OM 356 OM 366

MERCEDES-BENZ

2219 / 2219

Flatbed/Chassis 6 x 4

OM 401

MERCEDES-BENZ

1717 / 1717AK

Dump Truck 4 x 4

OM 366

MERCEDES-BENZ

1317 / 1317

OM 366A

MERCEDES-BENZ

1617 / 1617CS

Truck Tractor 4 x 2

OM 362 OM 366

MERCEDES-BENZ

2219 / 2219K

Dump Truck 6 x 4

OM 401

MERCEDES-BENZ

1117 / 1117AK/K

Dump Truck 4 x 2/4

OM 366

MERCEDES-BENZ

1720 / 1720

Flatbed/Chassis 4 x 2

OM 366LA

MERCEDES-BENZ

1820 / 1820AK/K

Dump Truck 4 x 2/4

OM 356 OM357

MERCEDES-BENZ

1720 / 1720S

Truck Tractor 4 x 2

OM 356

MILITARY-TRUCKS

SAMIL / SAMIL50MKI

Deutz F6L 413F

MILITARY-TRUCKS

SAKOM / SAKOM50

Deutz F6L 413F

SAKOM

SAKOM 50 / SAKOM-50

Deutz F6L 413F

SAMIL

SAMIL 50 MK I / SAMIL50MKI

Deutz F6L 413F

3482 051 131 Cover Assembly Discontinued

Replaced by

3482 000 953

Manufacturer Cross References

Not a kit component.

Specifications

Brand SACHS

Diameter [mm] 350

Net Weight (kg) 27,00

Parameter GMF350X

OE / Original Equipment Numbers 7

IVECO 7138962 MERCEDES-BENZ 004 250 24 04 MERCEDES-BENZ 695 250 71 04 MERCEDES-BENZ A 004 250 24 04 MERCEDES-BENZ A 695 250 71 04 NEOPLAN 0401.112.00 NEOPLAN 0421.003.00

135.005 Cover Assembly Available

Manufacturer Cross References
